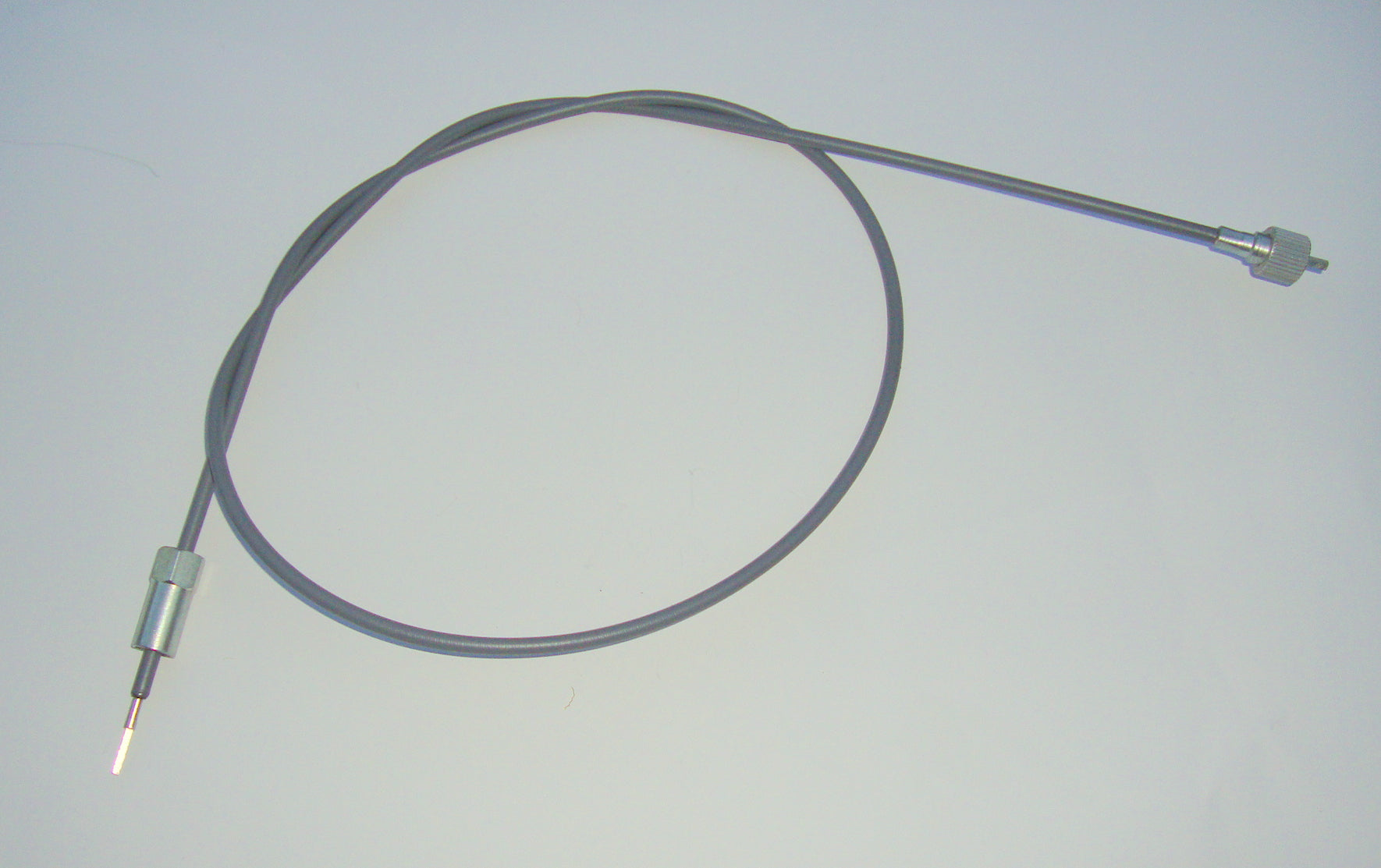

Speedometer transmission VDO, grey sleeve, with nut, Vespa 125 / 150 / 160 German production

Speedometer Transmission for Vespas produced in Germany with VDO Speedo

Length 1020 mm, upper conection 1,8 mm, lower conection 2,7 mm

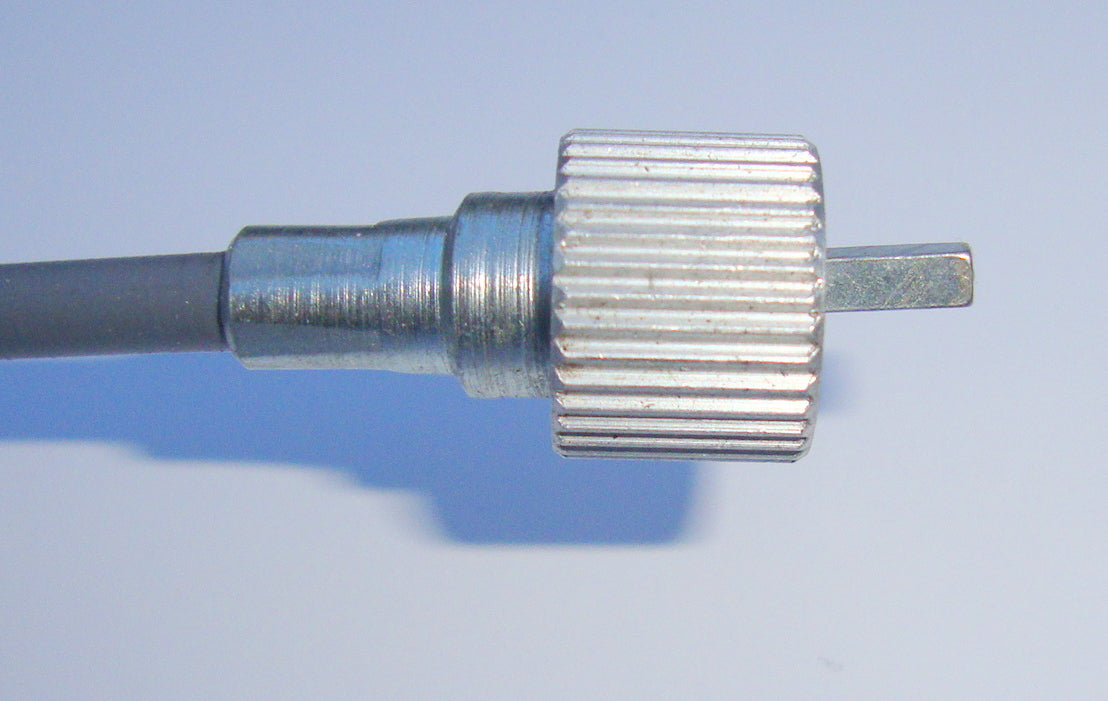

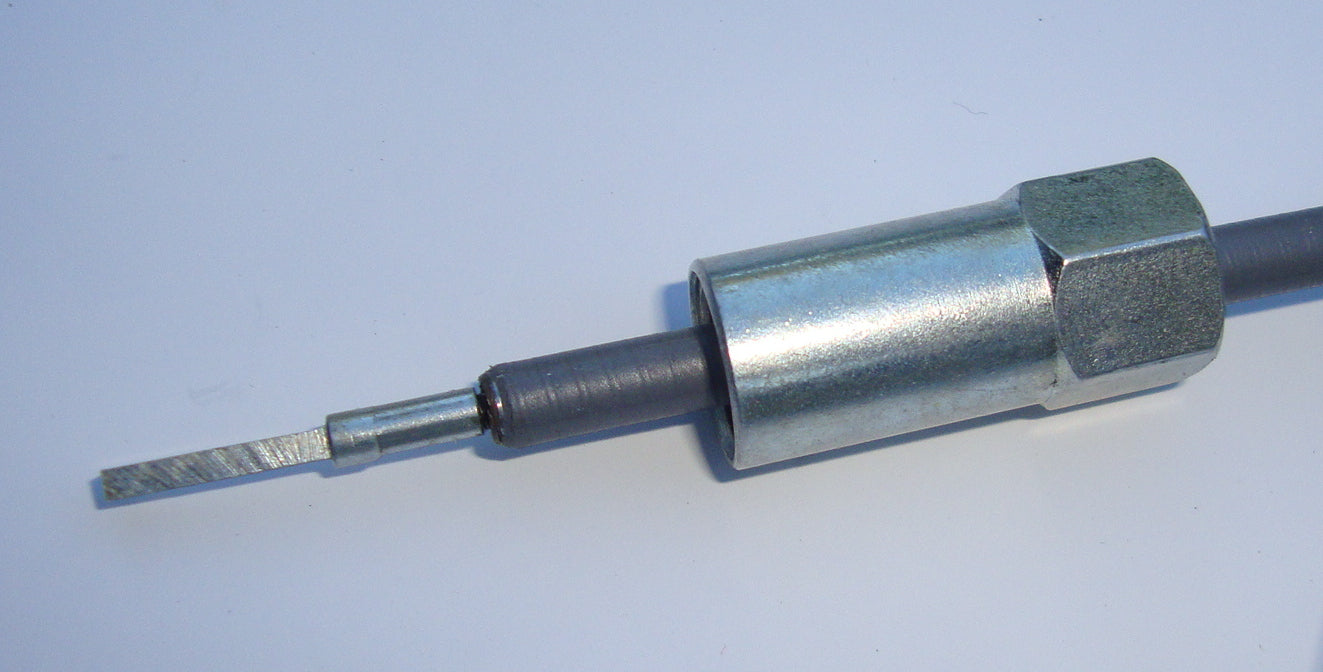

Installation note: after removing the union nut and installing through the fork first the Install a rubber seal to prevent the nut from slipping into the fork can. The clamp connection goes to the top of the speedometer. When installing, insert the speedometer cable up to the stop, then pull it back a little (1mm) to have this clearance to work.

Vespa 125/2,  VNB1T-2T

 Vespa 150/T4  VGLA1T > VGLB1T

Vespa 150 GS2  VD1TS

Vespa 150 GS3  VD2TS

 Vespa 150/T3  VD2T

Vespa 160/GS4  VSB1T
